Hydrogen is rapidly gaining traction as a clean, efficient, and versatile energy source, making it a key player in the global transition toward sustainable energy. However, its unique properties present specific challenges, particularly its tendency to leak. In hydrogen systems, even minor leakage can pose serious safety, environmental, and economic concerns. One critical area of focus is the prevention of leakage through safety devices such as pressure relief valves (PRVs).
Why hydrogen leaks so easily
Hydrogen H2 is the smallest and lightest of molecules, composed of two protons and two electrons. The small molecular size makes it far more likely to escape containment than other gases. There are three main reasons for its high leakage potential:
* Small molecular size: Hydrogen molecules can penetrate microscopic imperfections in materials or poorly sealed connections that would easily contain larger gases.
* Low viscosity: This allows hydrogen to flow and spread more easily, increasing the likelihood of escape throughsmall gaps or poor seals.
* High diffusivity: Hydrogen can diffuse quickly through many materials, including metals, leading to a phenomenon known as hydrogen embrittlement over time.
These factors combine to make hydrogen highly prone to leakage.
The risks and costs of hydrogen leakage
Hydrogen leakage isn’t just a technical nuisance—it’s a serious safety and economic concern.
* Safety hazards: Hydrogen is extremely flammable, and even a small leak can result in explosive mixtures with air. Adding to the danger, hydrogen flames are nearly invisible to the naked eye. Undetected leaks can lead to catastrophic events if not managed properly.
* Economic and environmental impact: Every leak represents a direct financial loss. Beyond the cost of lost hydrogen, maintaining systems to prevent or detect leaks adds significant operational expenses. Environmentally, while hydrogen itself is clean, its production, especially when fossil-fuel-based, has a carbon footprint. Minimising losses is vital to making hydrogen a truly sustainable energy solution.
Common leakage points: Pressure relief valves
One of the most common, yet often overlooked, sources of hydrogen leakage is through pressure relief valves (PRVs). PRVs are essential safety devices, designed to open when system pressure exceeds safe limits, then reclose to maintain system operation. However, PRVs are particularly vulnerable to hydrogen leakage owing to their design.
Most PRVs use metal-to-metal seals to achieve leak tightness. Because hydrogen molecules are so small and mobile, they can ‘weep’ through these seals. Over time, valve components wear down, increasing the rate of leakage. Even valves designed with soft seats (such as O-rings) to improve sealing can degrade under long-term hydrogen exposure, losing their effectiveness owing to permeability and chemical interaction with the gas.
The Solution: Pairing PRVs with rupture discs
To address the challenge of leakage through PRVs, many hydrogen systems now incorporate rupture discs as an added layer of containment.

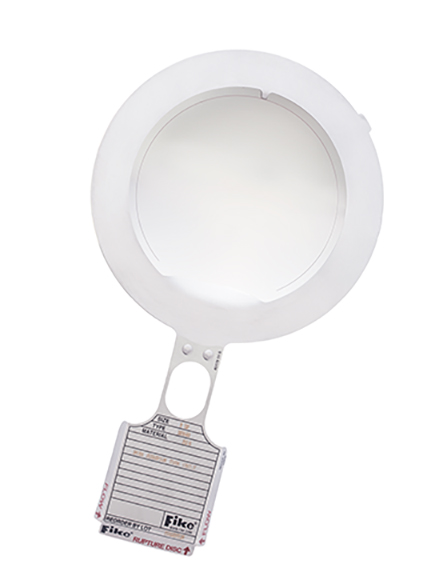

Rupture discs are non-reclosing safety devices that burst at a predetermined pressure, providing a one-time release point. While a PRV can be completely replaced by a rupture disc, the reclosing nature of a PRV is often a desired feature in the overpressure protection system design. When installed upstream of a PRV (between the PRV and the process), the rupture disc acts as a barrier under normal operating conditions. This setup significantly reduces leakage, as rupture discs are typically much more leak-tight than PRVs.
A critical step in hydrogen system design
As hydrogen systems scale up and become more widespread, attention to detail in design is crucial. Preventing hydrogen leakage isn’t just about plugging holes, it’s about understanding the unique behaviour of the gas and engineering solutions that meet those challenges.
Using rupture discs in combination with pressure relief valves is one such simple and cost-efficient solution. This prevents leakage, enables easier testing, reduces maintenance costs, and extends equipment life. For any industry moving toward hydrogen, this pairing should be a standard part of the containment strategy.
The benefits of rupture discs
* Enhanced leak prevention: A well-chosen rupture disc, especially one made from hydrogen-compatible materials like austenitic stainless steels or Inconel 625, can virtually eliminate leakage under normal conditions
* Material cost savings: With the rupture disc shielding the PRV from constant hydrogen exposure, more cost-effective PRV materials such as carbon steel or standard stainless steel can be used, reducing system cost.
* Operational efficiency: This setup allows for in-situ PRV testing. By pressurising the volume between the PRV and the rupture disc to the opening pressure of the PRV it can be tested without removing it from the system. As a rupture disc can withstand a back pressure it will not open, or be damaged, during this process.
