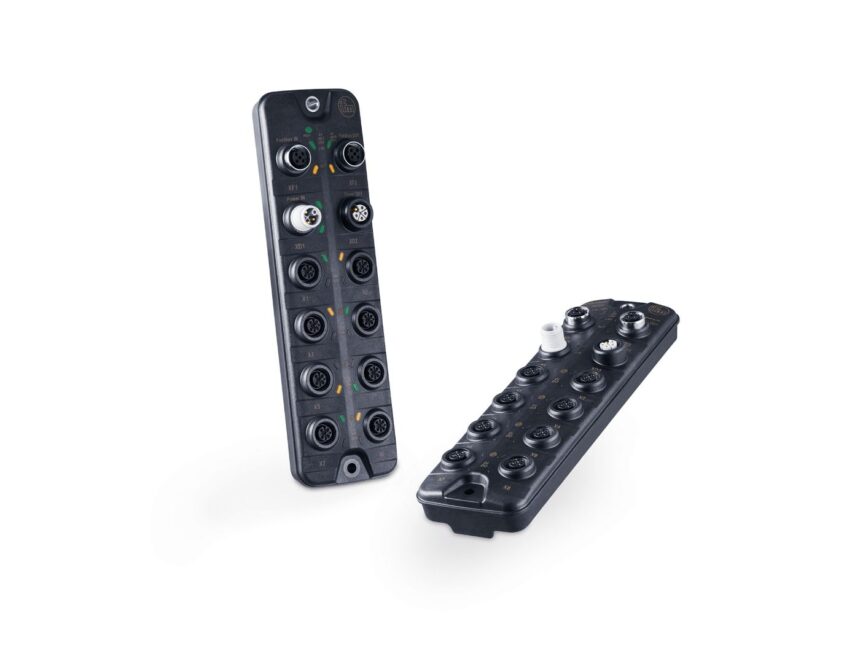

ifm has released the AL1602, a multiprotocol-capable IO-Link master from the AutomationLine range, for decentralised use in the field
The new device combines flexible I/O configuration, high output current, and robust 1P67 construction to support scalable automation across a range of industrial applications where reliable field-level installation is required.
The AL1602 represents a new generation of decentralised IO-Link masters in the AutomationLine series and addresses a common challenge in mechanical and plant engineering : reducing engineering effort whilst maintaining flexibility across different control architectures.
Consolidating communication, power supply, and configuration into a field-mounted unit enables the AL1602 to standardise machine designs and reduce the number of type variants required.
The master provides eight IO-Link ports supporting class A and B, with 16 freely configurable digital inputs and outputs. The optimised device architecture allows these channels to be configured and operated flexibly to match the demands of each application. A current rating of up to 2A per output makes the AL1602 suitable for power actuators, including the direct control of motorised rollers, conveyor drives, diverters, and stoppers.
Designed for demanding industrial environments, the AL1602 includes a glass-fibre reinforced polycarbonate housing and a fully potted printed circuit board. With an IP67 protection rating and an operating temperature range of –40 to 70 °C, the device is suitable for decentralised installation in the field. The common ground concept enables a compact, cost-efficient design, and the integrated daisy-chain function simplifies voltage supply to multiple masters and reduces wiring effort.
An integrated multiprotocol interface enables the AL1602 to be integrated into different fieldbus architectures without changing the hardware; this helps standardisation, reduces type versions, and sustainably minimises engineering effort across projects. Additionally, for parameter setting of the IO-Link infrastructure, the device is compatible with moneo|configure free.
