Solution for those who develop telecommunications and networking products for use in industrial and data processing technology

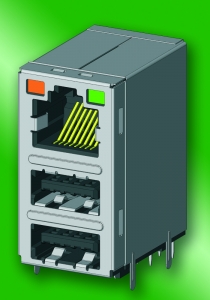

In the form of its 030183MHFG4M565ZA product, SUYIN is offering a highly compact connector that brings together an RJ45 jack and two Type-A USB receptacles to meet the needs of complex applications.
This female connector, which has been designed for through-hole mounting and offers a total of 18 + 14 terminals, is fitted with contacts featuring 10 µm to 50µm gold plating over 50µm nickel plating, and it has overall dimensions (L x W x H) of 27.30mm x 18.80mm x 30.96mm.
The RJ45 jack (8P/8C) is equipped with eight transmit/receive filters (transformer modules) as well as two high-luminosity LEDs (green/orange and yellow).[Page Break]
During transmission of 10/100/1000 Base-T signals, the insertion loss is specified at between 1MHz to 125MHz at -1.2 dB (min.) and the common-mode rejection as well as the crosstalk are specified as being within the range of 1 MHz to 100 MHz, both at -30dB (min.).
The dual USB-A jack complies with the USB 3.0 standard and offers an insulation resistance of 1000MΩ (min.) with a dielectric strength of 750 VAC. Sophisticated shielding measures protect this complex component against electromagnetic interference.
Custom variants with or without filters and with modified wiring diagrams are available upon request – as well as custom specific platings.
For more information, visit www.suyin-europe.com
